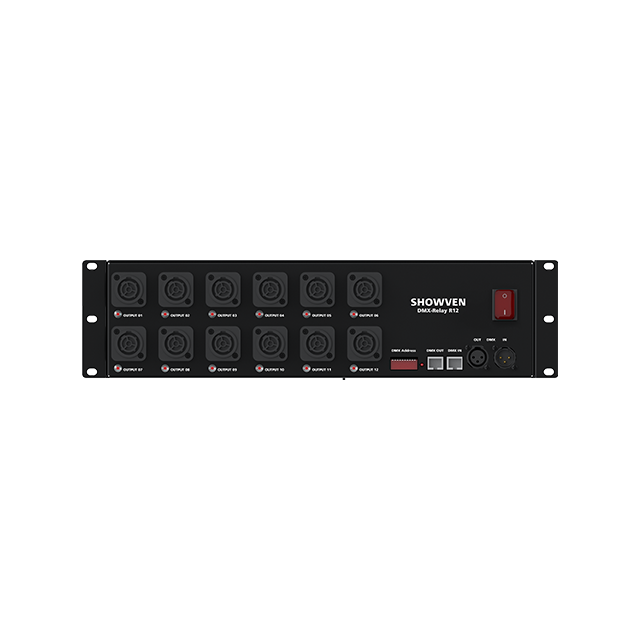

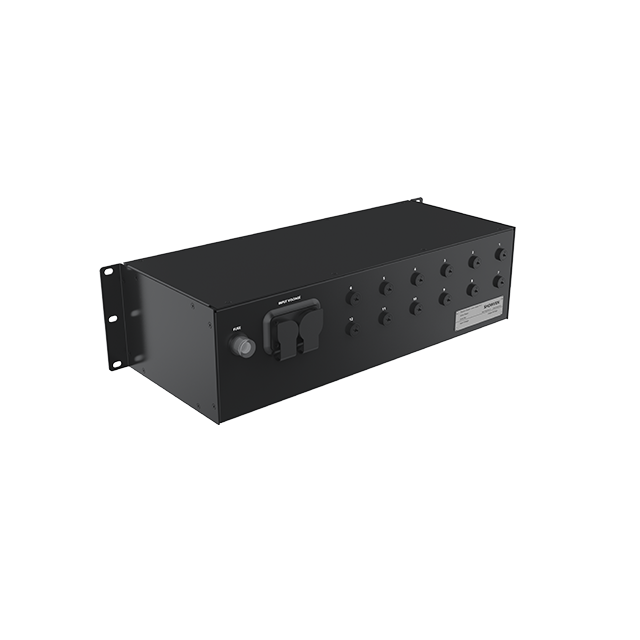

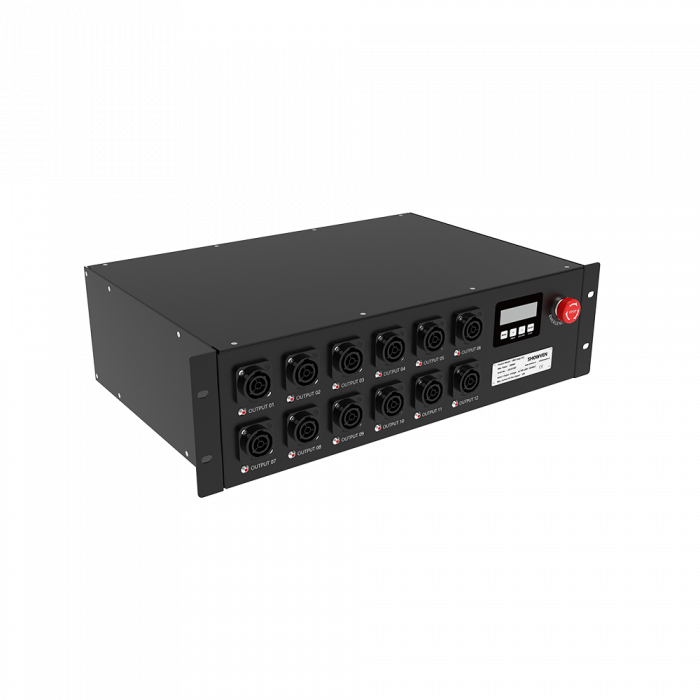

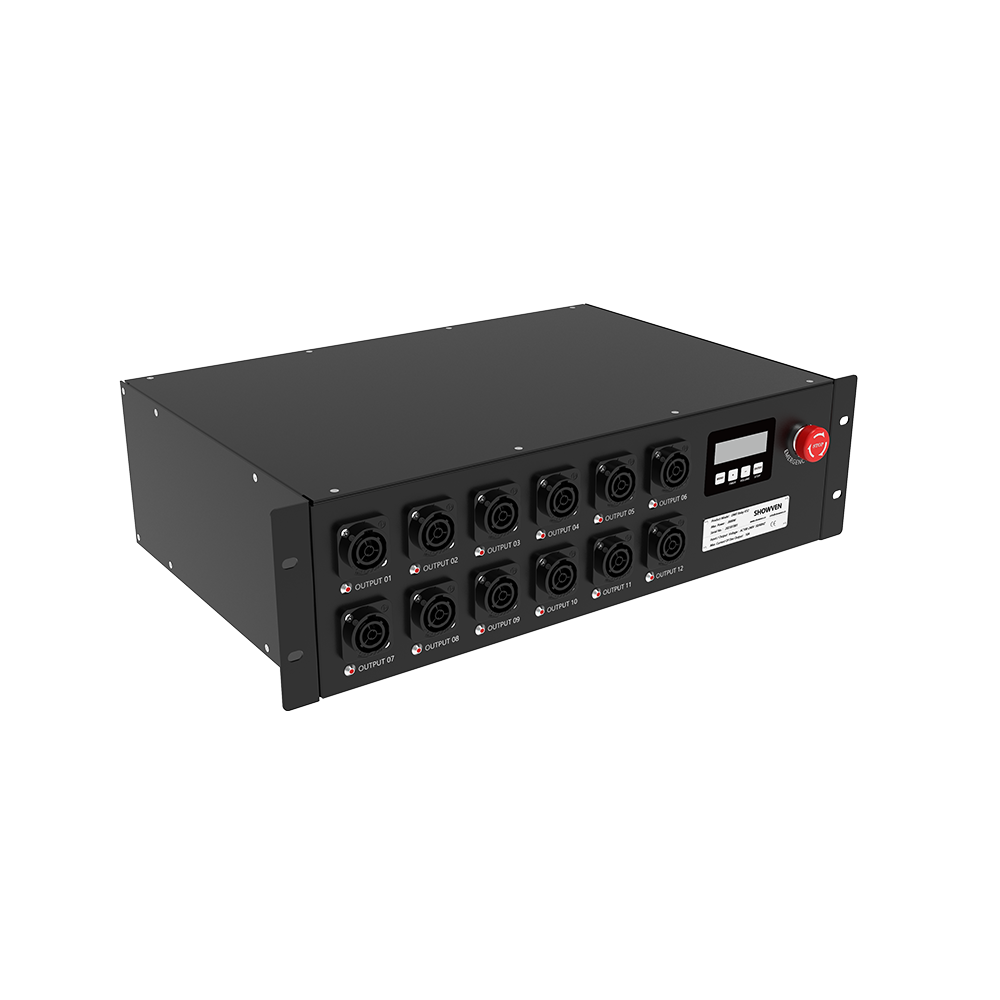

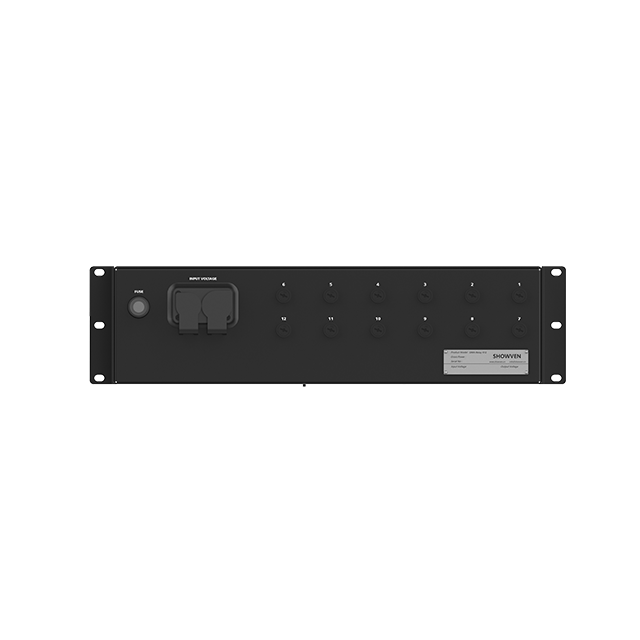

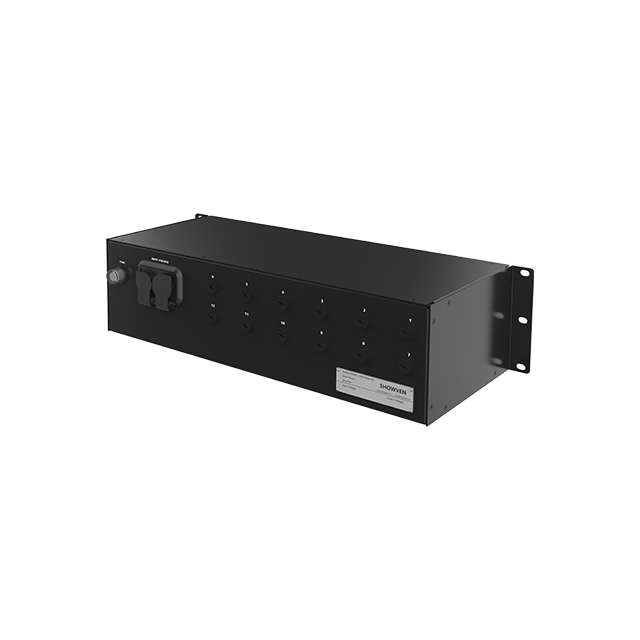

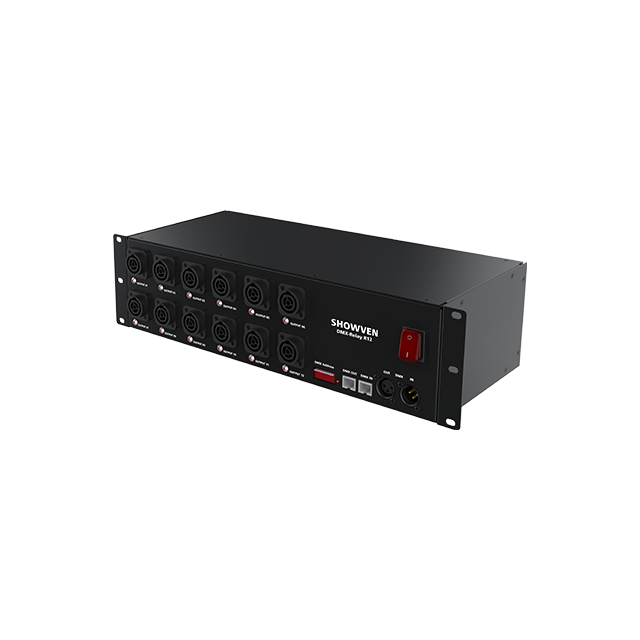

The DMX Relay R12 allows sfx technicians to add DMX control to any switchable device which not include onboard DMX such as CO2 jet, confetti blasters etc. It can convert the DMX signal from the master console into a voltage signal for output. DMX Relay R12 maximum support 12units of switchable devices.
Specifications:
Dimension: 485 x 180 x 120 mm Weight: 5kg Input: 200-240V/100-120V, 50/60Hz Control Voltage Output: 110V / 220V Voltage Output Interface: 12 Maximum Output Current: 10A Power Input Connector: Neutrik NAC3PX-TOP Voltage Output Connector: Neutrik NAC3FPX-TOP
