Description
Features and advantages
8-way DMX splitter Built-in signal amplifier boosts the DMX signal for each port Bi-directional data transfer function with SHOWVEN device E-stop function, safer operationDMX SPLITTER 8

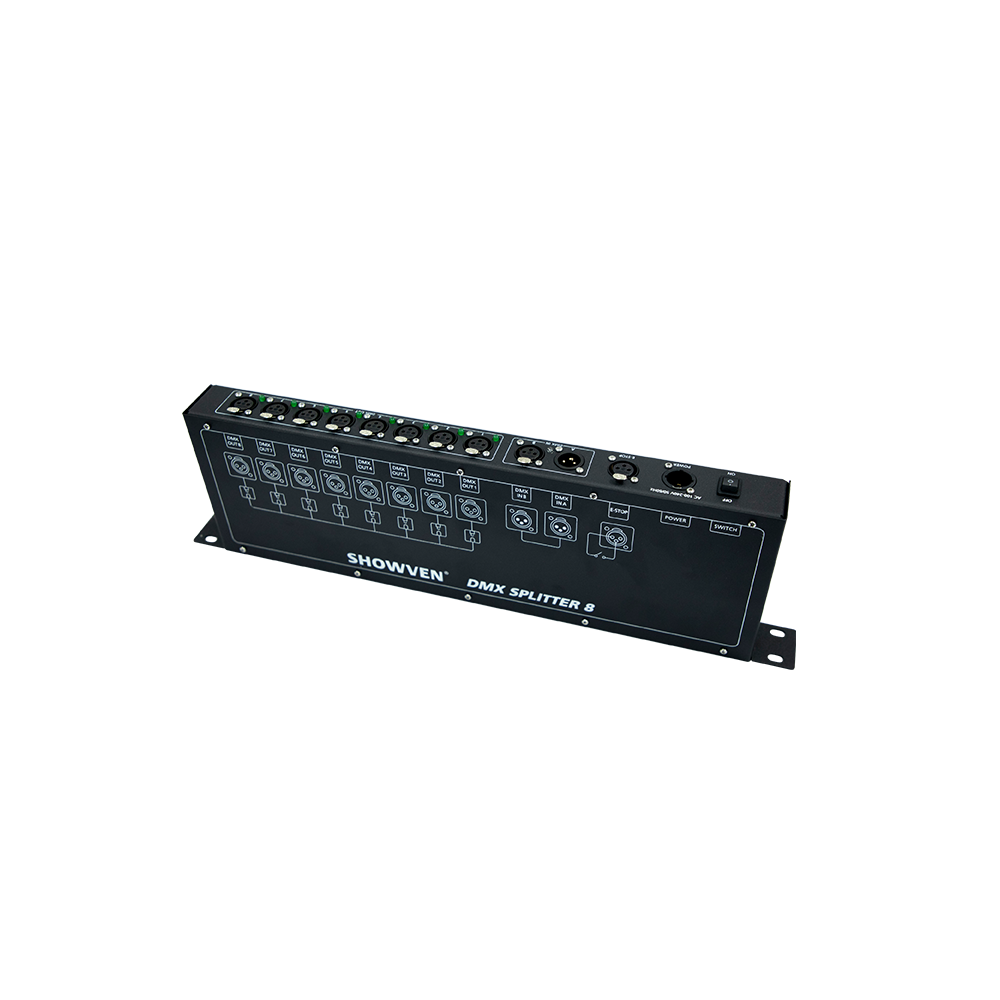

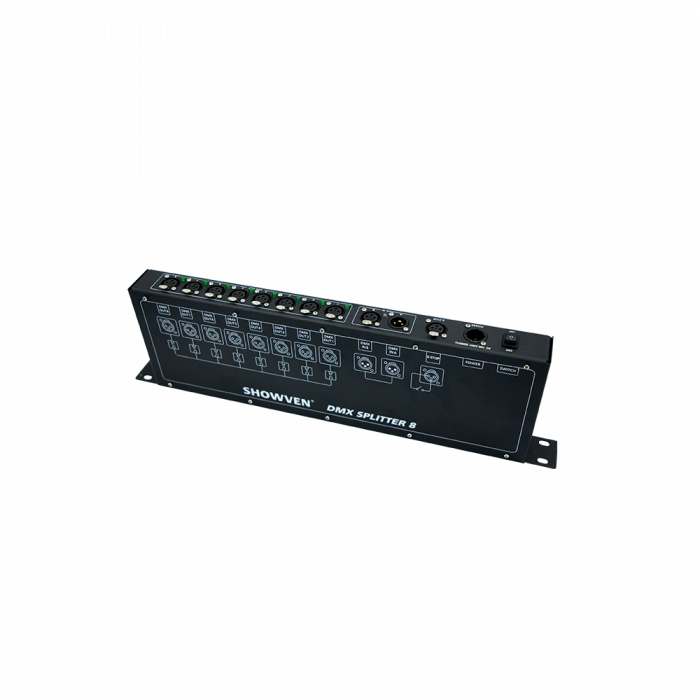

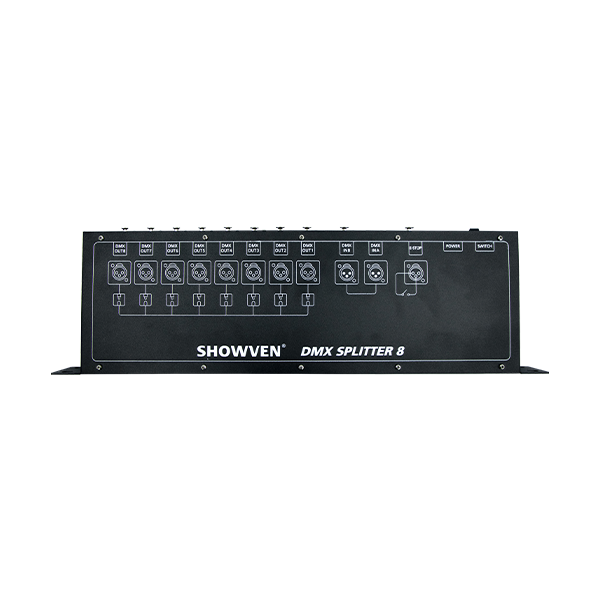

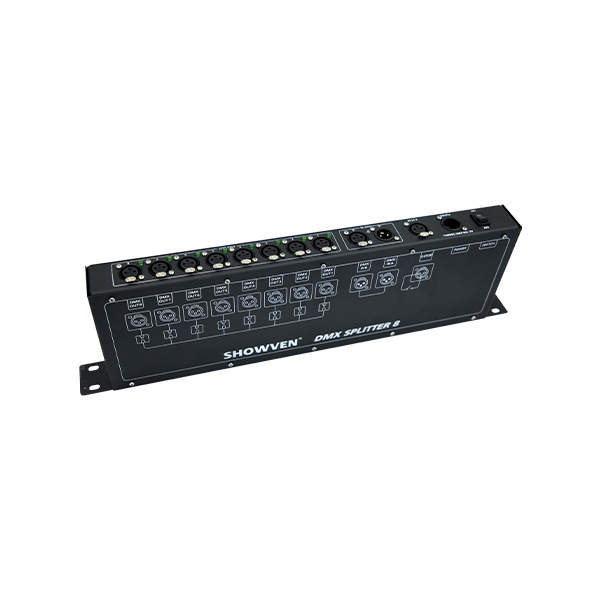

DMX SPLITTER 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals into 8 separate outputs. When it use together with SHOWVEN devices (FXcommander and SHOWVEN special effects device) it with bi-directional data transfer function. Each input and output interface adopts electrical isolation technology. DMX SPLITTER 8 can effectively buffer, amplify and split standard DMX signal received, input to output, output to output electrical isolation withstand voltage greater than 1000V.
Specifications:
Dimension: 530×153×49mm
Weight: 2.8kg
Input: AC 220V/110V, 50/60 Hz
Work power: 5W
Housing material: 304 Stainless steel

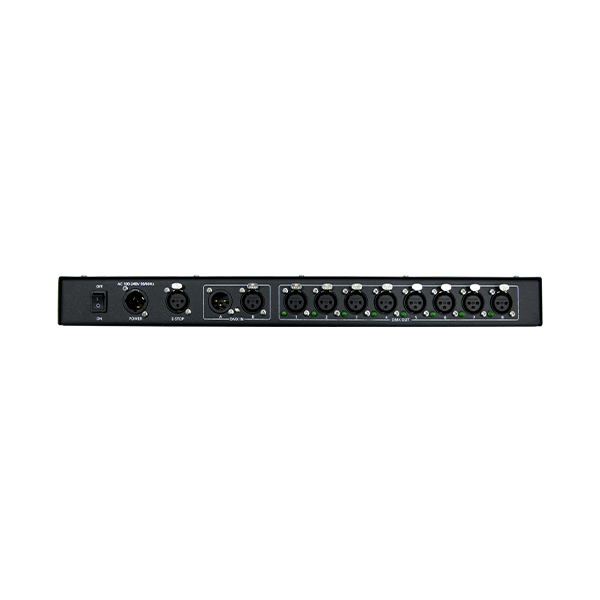

Interface: Neutrik PowerCON TRUE1; Neutrik DMX IN×1; Neutrik DMX THRU×1; Neutrik DMX OUT×8
Category: CONSOLE&PYRO
8-way DMX splitter Built-in signal amplifier boosts the DMX signal for each port Bi-directional data transfer function with SHOWVEN device E-stop function, safer operation
