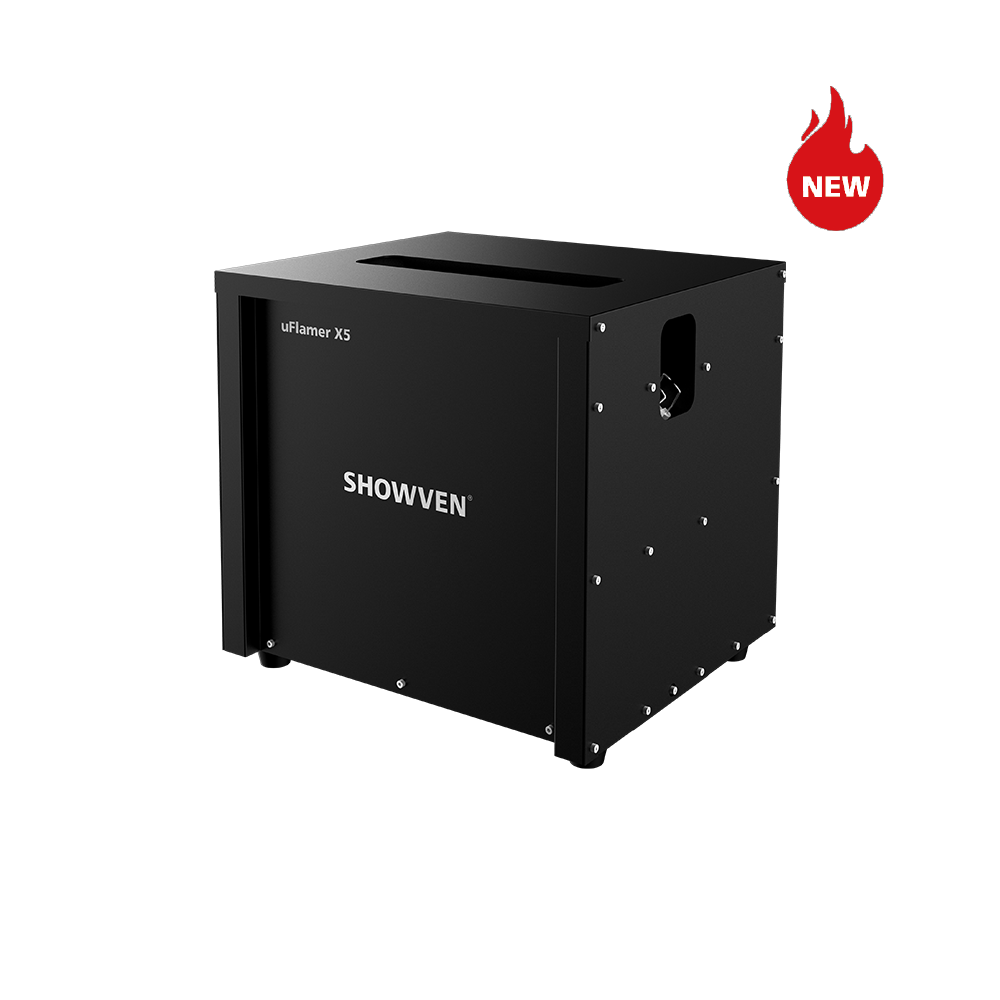

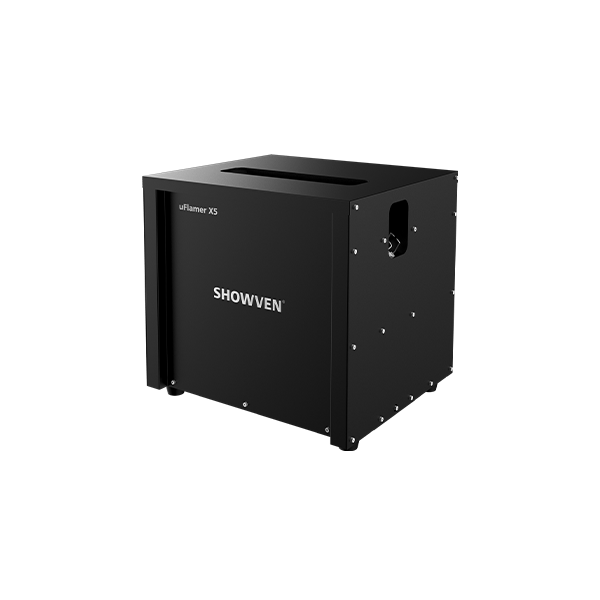

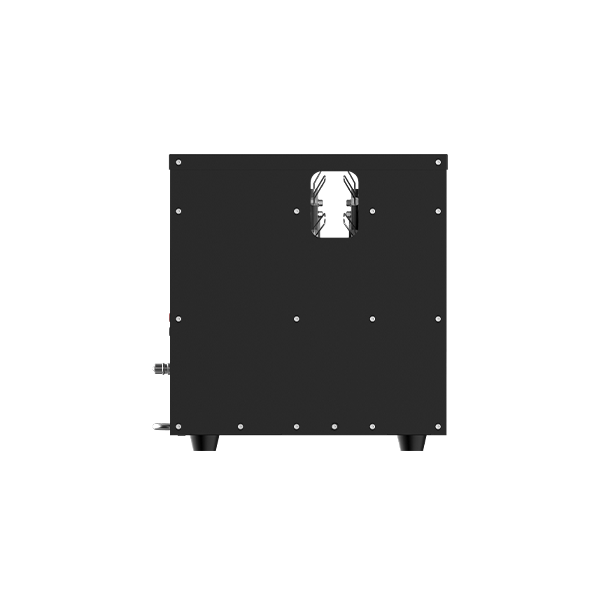

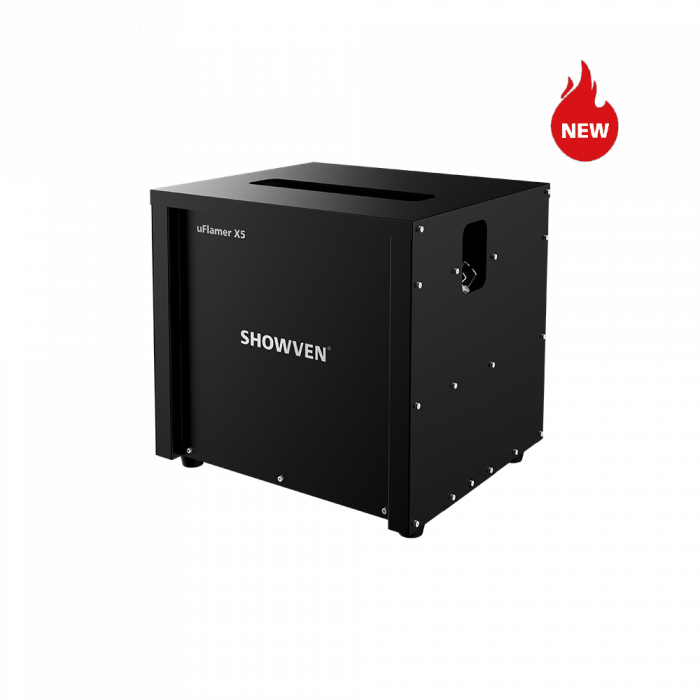

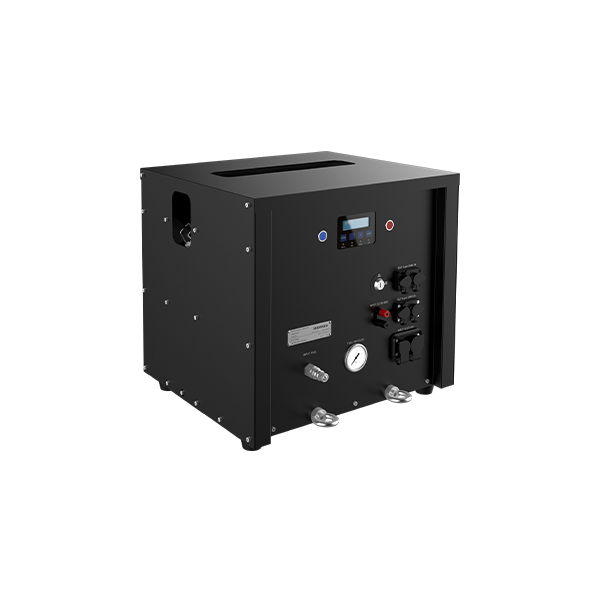

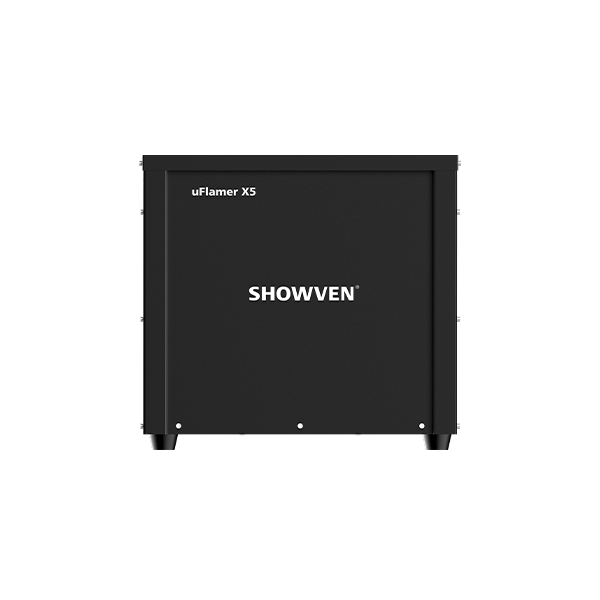

SHOWVEN® FLAME SYSTEM is a hydraulic based flame effect solution for project or truss mounted installations. It is consist of flame head, pump station, control box and accessories such as hoses, cables etc. It can easily achieve remote fuel supply with the pump station and no nitrogen tank needed. uFlamer X5 is a flame head with 5 output,each nozzle can be controlled independently.
Specifications:

Dimension:435×380×405 mm

Weight:40 kg

Housing material:304 stainless steel

Input:AC100-240V, 50/60Hz

Work power:400W

Flame height:3-10m(no wind)

Usage in Rain: Yes

Ignition: Triple, high voltage electron ignition

Control: DMX, 9-60V pyro signal

Quick Couplers: ISO7241B G1/4 male

Work pressure range: 8-12Bar

Firing Angle: 5

Installation Direction: Any direction

Fuel: ISOPAR L

Pressure Gauge: Yes, mechanical
