SHOWVEN® LASER-Maiman15

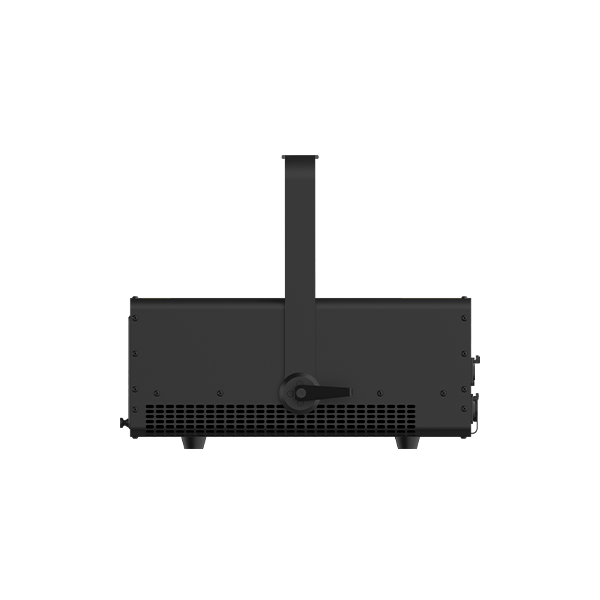

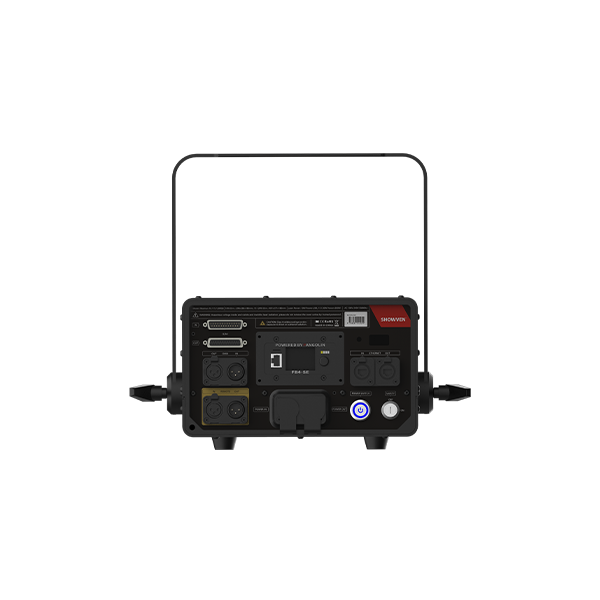

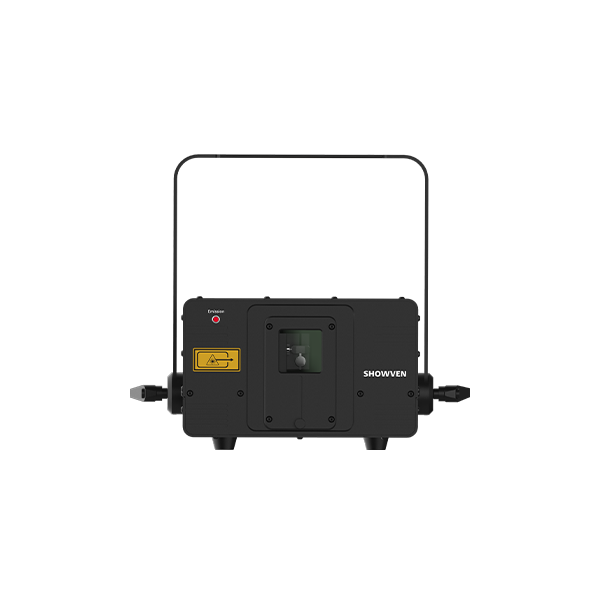

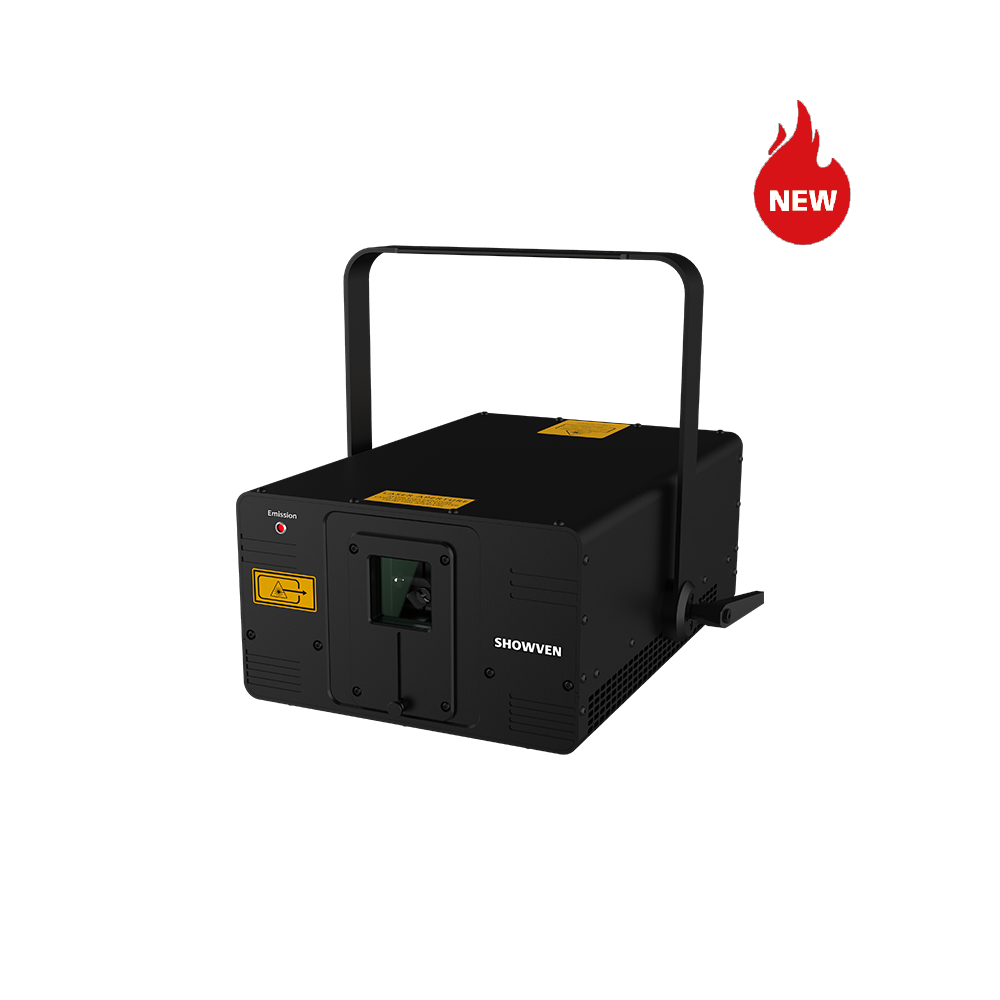

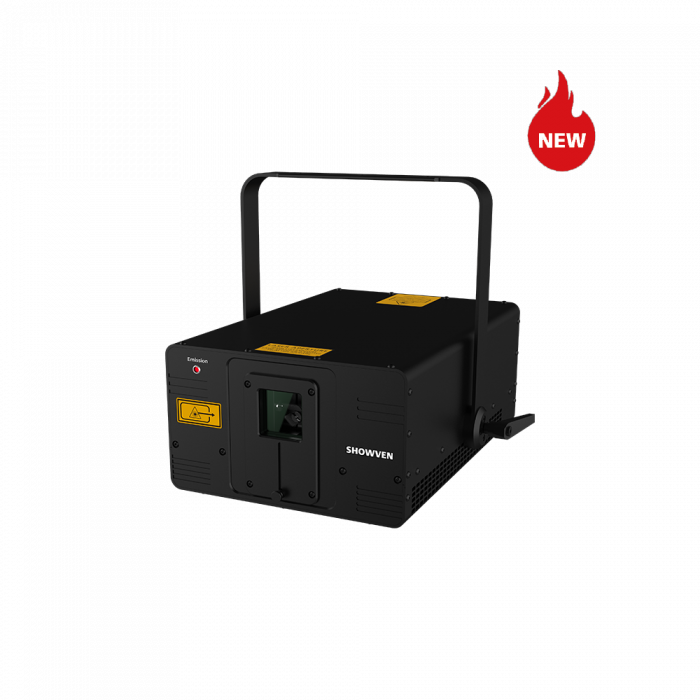

SHOWVEN® Maiman 15 full-colour RGB laser is a new product based on our Maiman platform. It is with double-layer structure design, IP65 rated enclosure. Equipped with safety switch key, remote E-stop function, scan-fail safety etc. safety related configurations ensure the safety and controllability of laser use to the greatest extent.

Specifications:

Power Supply: AC100-240V, 50/60Hz
Output: 15W
R module: 4W/LD Mitsubishi 638nm
G module: 5W/LD Nichia 520nm
B module: 6W/LD Nichia 450nm
Scanning System: AT50LB(+30°40K)
Beam Size: 5 ×6.5mm
Beam Divergence: <1.1mrad
Analogue modulation: 100K, Analog/TTL
IP level: IP65
Work Temp.: -20-40℃
Weight: 12kg
Dimension: 396×270×180mm
System Control: FB4, Ethernet, DMX, ILDA, Auto, SD card, Sound
Compliant with: EN60825-1:2014+A11:2021
Safety Features: Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety.

Category: LASER

Description

Features and advantages

IP65 rated water and dust protection

Guaranteed optical output

Safety switch key, scan-fail safety

Quick locking 360° rotatable handle, easy angle adjustment

Compressed light source,spot and fiber optics ensure stronger beam, sharper spot and smaller divergence angle

Analog modulation, high linearity and rich beam color

TEC temperature control, split refrigeration ensure best working condition of LD

Over-temperature protection ensures good performance of optical module components

External dimming bracket, dimming will not damage the module cavity environment

External TEC cooling module, no thermal conductive silicone grease inside the module to prevent oil and water evaporation from affecting the lens and heat from returning to the light source layer

PWM fan control, silent design

Realtime internal temperature monitoring and display, over-temperature protection

Remote emergency stop function
