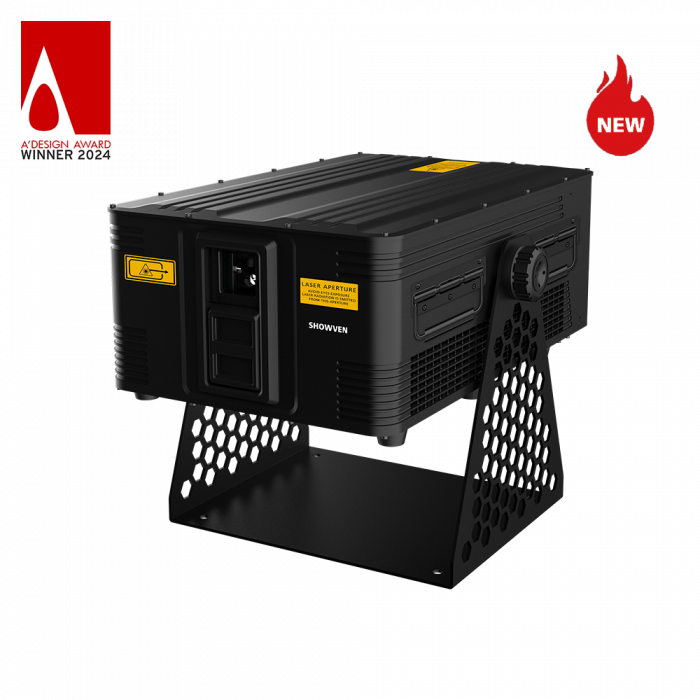

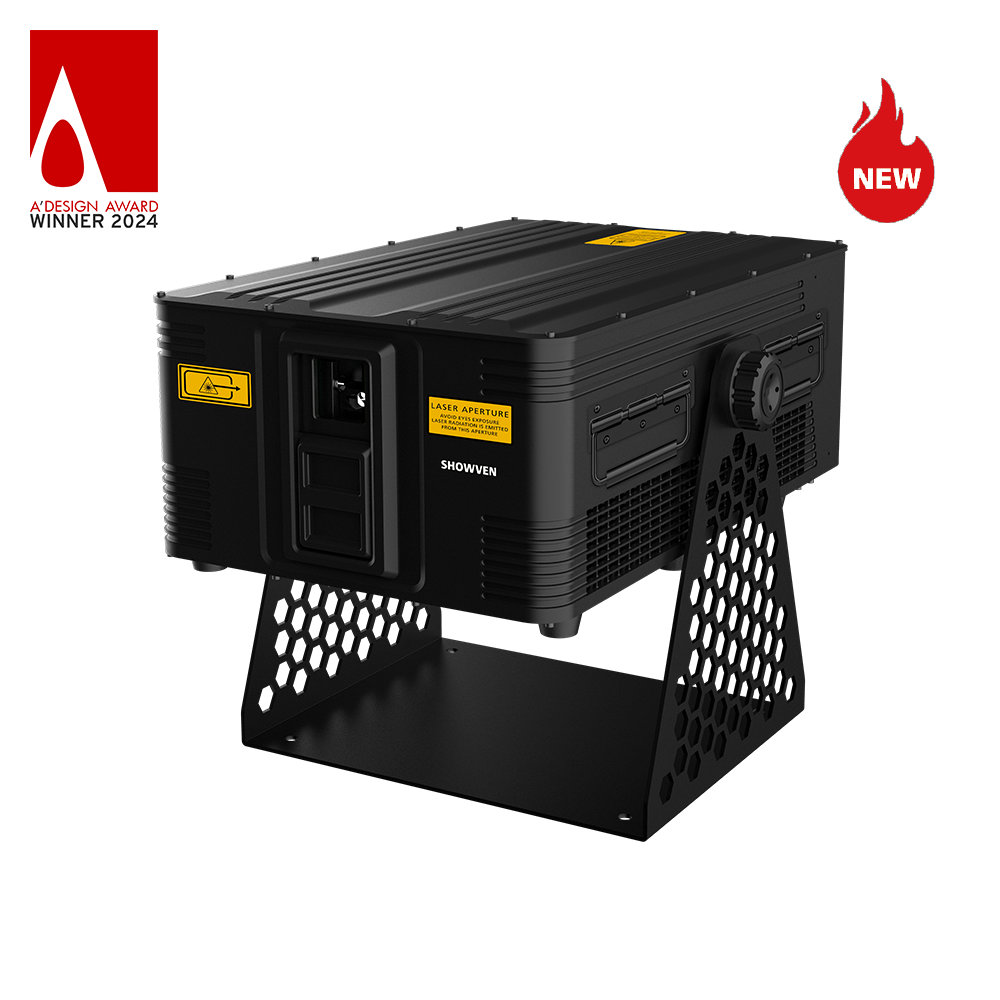

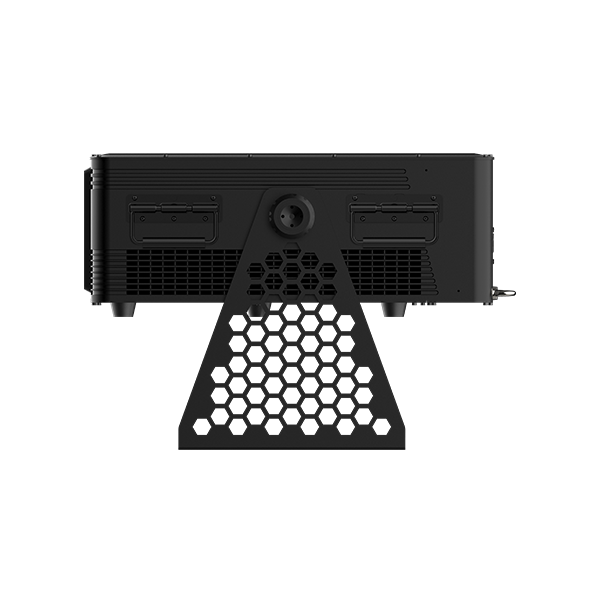

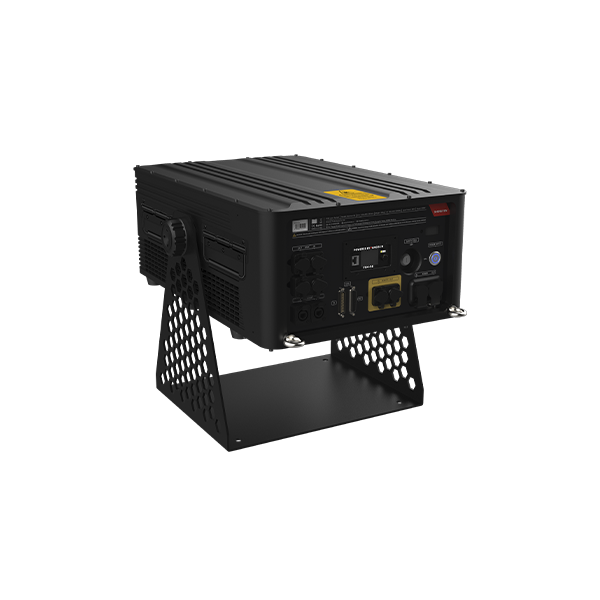

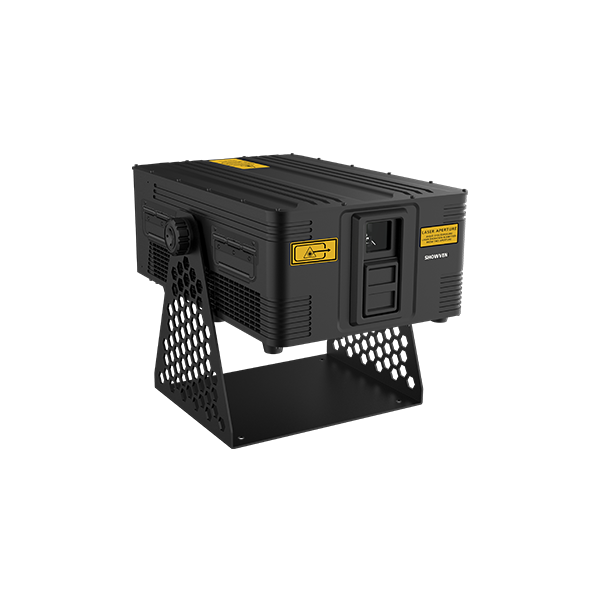

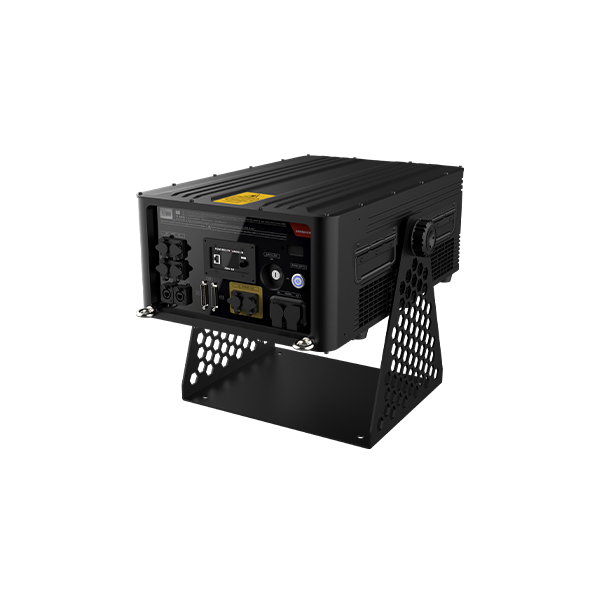

SHOWVEN® series full-colour RGB lasers are launched based on our more than 4 years in-depth laser market research. We aimed to bring quality, premium design and cost-effective laser system to the global market. Our Maiman series full-colour RGB lasers with double-layer structure design, IP65 rated enclosure. Pure diode light source guarantee higher reliability and smaller beam divergence angle. Equipped with safety switch key, remote E-stop function etc. safety configurations ensure the safety and controllability of laser use to the greatest extent. To extend the service life of our laser we equipped with PWM fan control, noise reduction design, realtime temperature monitoring and over-temperature protection function.
Specifications:
Power Supply: AC100-240V 50/60Hz
Output (max): 60W
R module: 15W/LD Mitsubishi 638nm
G module: 20W/LD Nichia 520nm
B module: 25W/LD Nichia 450nm
Scanning System: AT30H/1040 (20°25K)
Beam Size: 7×12mm
Beam Divergence: <1.5mrad(full angle)
Analogue modulation: 100K,Analog/TTL
IP level: IP65
Work Temp.: -20-40℃
Weight: 50kg
Dimension: 630×495×253mm
System Control: FB4, Ethernet, DMX, ILDA, Auto, SD card, Sound
Compliant with: EN60825-1:2014+A11:2021
Safety Features: Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety etc.
