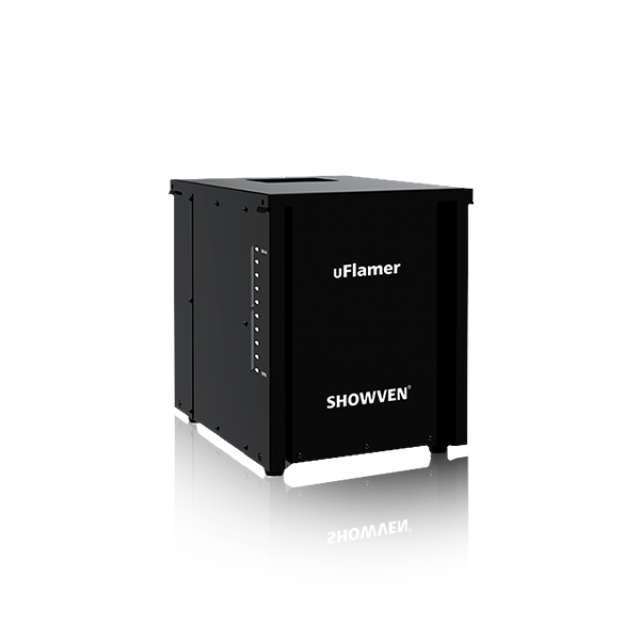

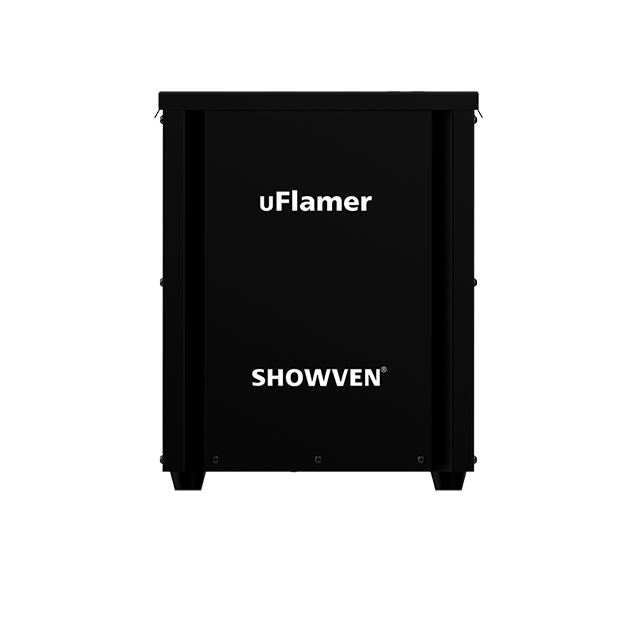

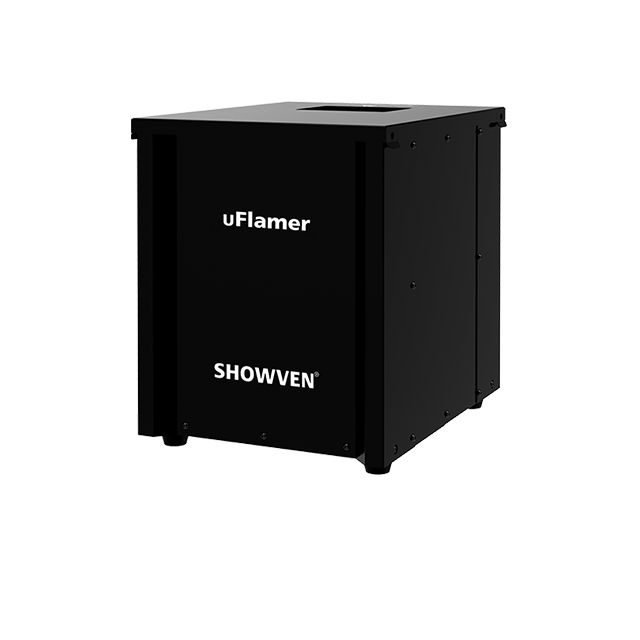

uFlamer®

stage fire machine

uFlamer®

uFlamer® is a global pioneer of vertical fluid driven flamer, with flame height up to 8-10m. Equipped with built-in fuel tank and pumping system makes it super easy to setup and operate. The fuel for uFlamer is ISOPAR, which is much safer as well as less restrictions comparing with existing gas flamers on the market.IPX3 rated design and indoor nozzle optional ensure flexible usage of uFlamer®.

Specifications:

Model: uFlamer

Dimension: 330 x 260 x 320 mm

Weight: 14kg

VOLTAGE: 100-240V, 50/60Hz

POWER: 300W

CONTROL: DMX

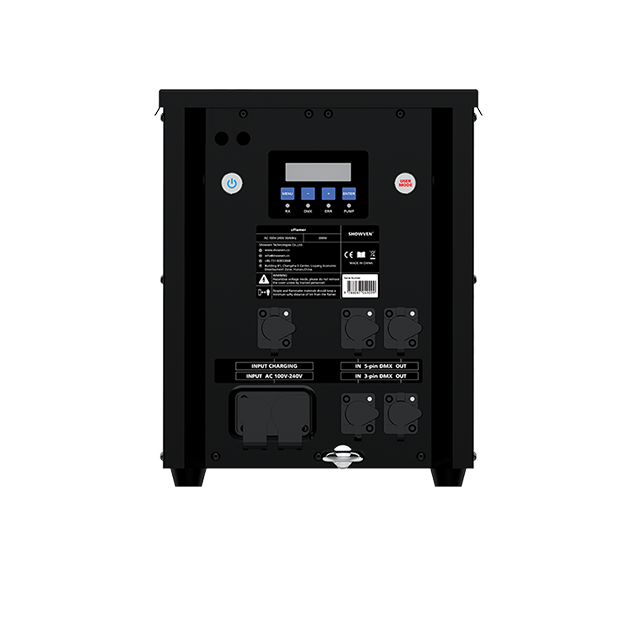

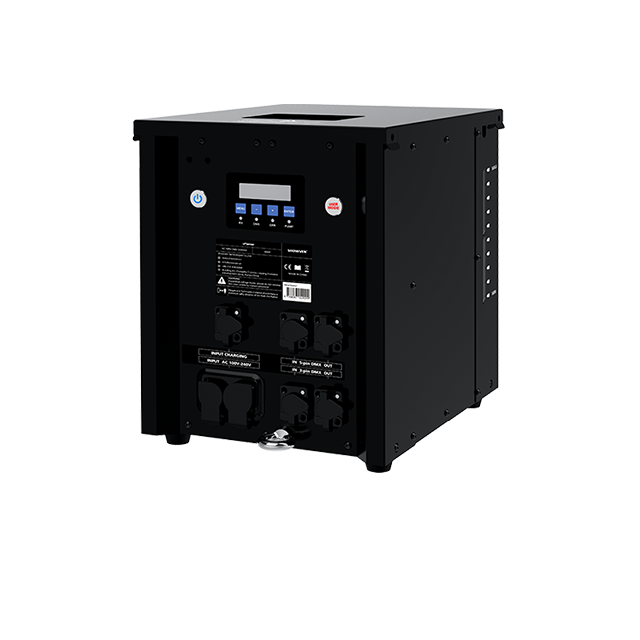

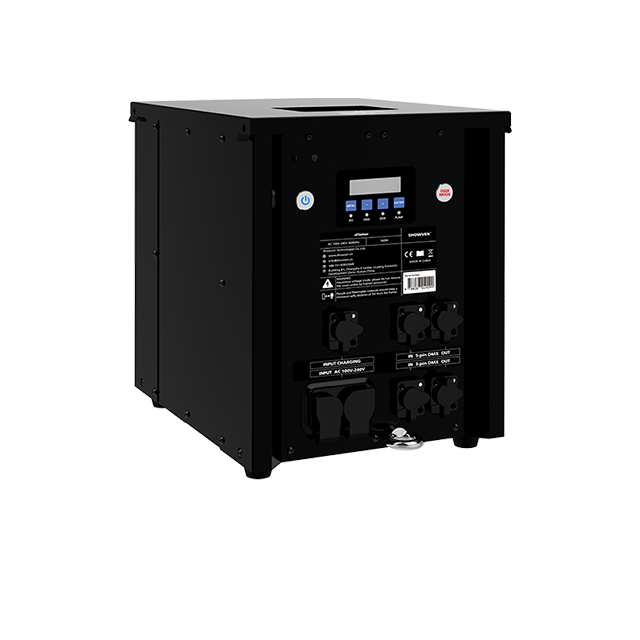

INTERFACE: 3-pin&5-pin DMX IN/OUT

FLAME HEIGHT: 8-10m (no wind)

FUEL: ISOPROPANOL, ISOPAR-G,H,L,M

FUEL TANK CAPACITY: 5L

FUEL CONSUMPTION RATE: 60ml/s

FUEL LEVEL SENSOR: YES

EFFECT DIRECTION: Vertical

LGNITION: High voltage electron ignition

IGNITOR: Dual

BUILT-IN BATTERY: OPTIONAL

USAGE IN RAIN: YES

Category: CIRCLE FLAMER

Category: FLAMER

Description

Description

Features and advantages

Fluid driven vertical flamer original designed by SHOWVEN®

Flame up to 8-10m, indoor nozzle optional

Dual igniter, built-in pump, plug and play system

Super compact pumping system design, easy carrying

Stainless steel housing, can be used in rainy weather, reliable and durable

Built-in 5L fuel tank, no external hose connection needed

Safety lock with switchable test mode, safer for service

Tilt protection, the tilt sensor will be activated when machine slant Over 45°

Intelligent control system, safer for use

Standard DMX control, compatible with all DMX console

Neutrik®powerCON TRUE1 connectors

Built-in battery optional

9-60V Pyro signal port customizable

Rerlated Cases

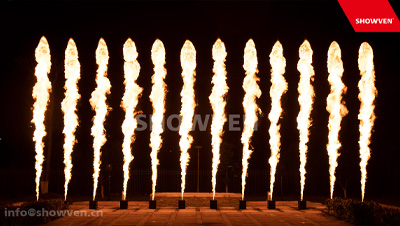

uFlamer® effect

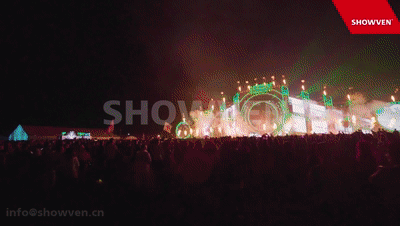

Clips of 3RD iSY MUSIC FESTIVAL——Sanya GIF 1

3RD-iSY-MUSIC-FESTIVAL-GIF

New-Years-Eve-concert-HNTV-GIF

New-Years-Eve-concert-HNTV

Alasha-dreamland-music-festival

New-Years-Eve-concert-HNTV-A

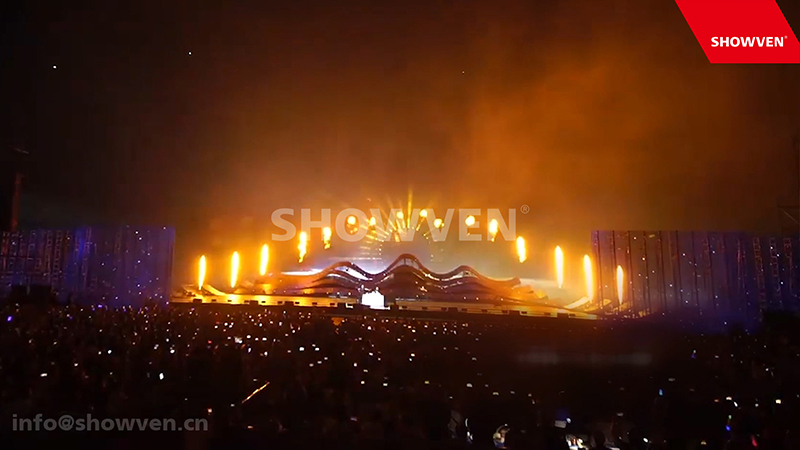

Liuyang-Fireworks-Conference2019

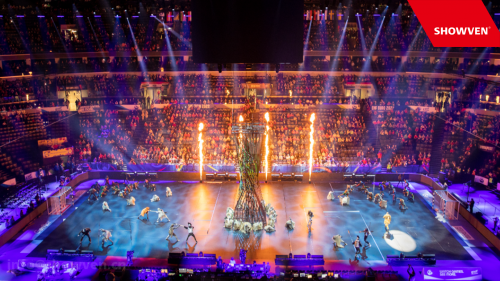

European Tournament 2022
