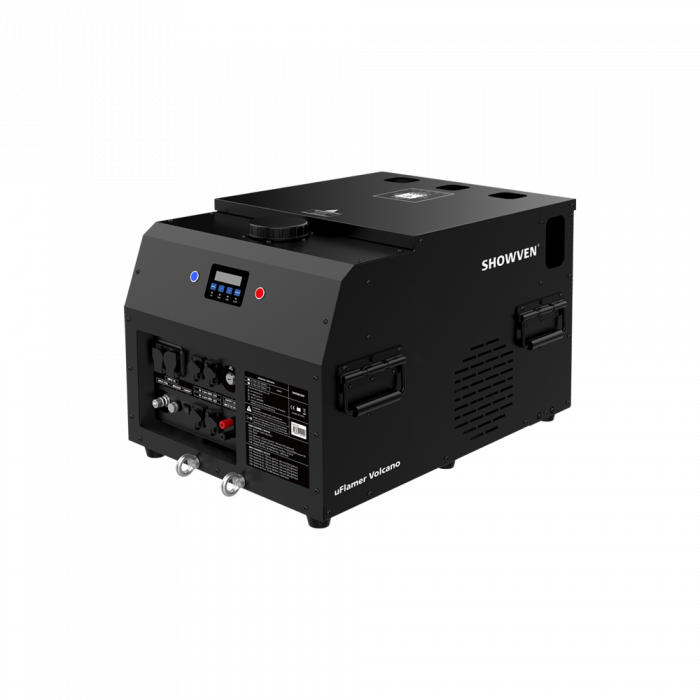

uFlamer® Volcano

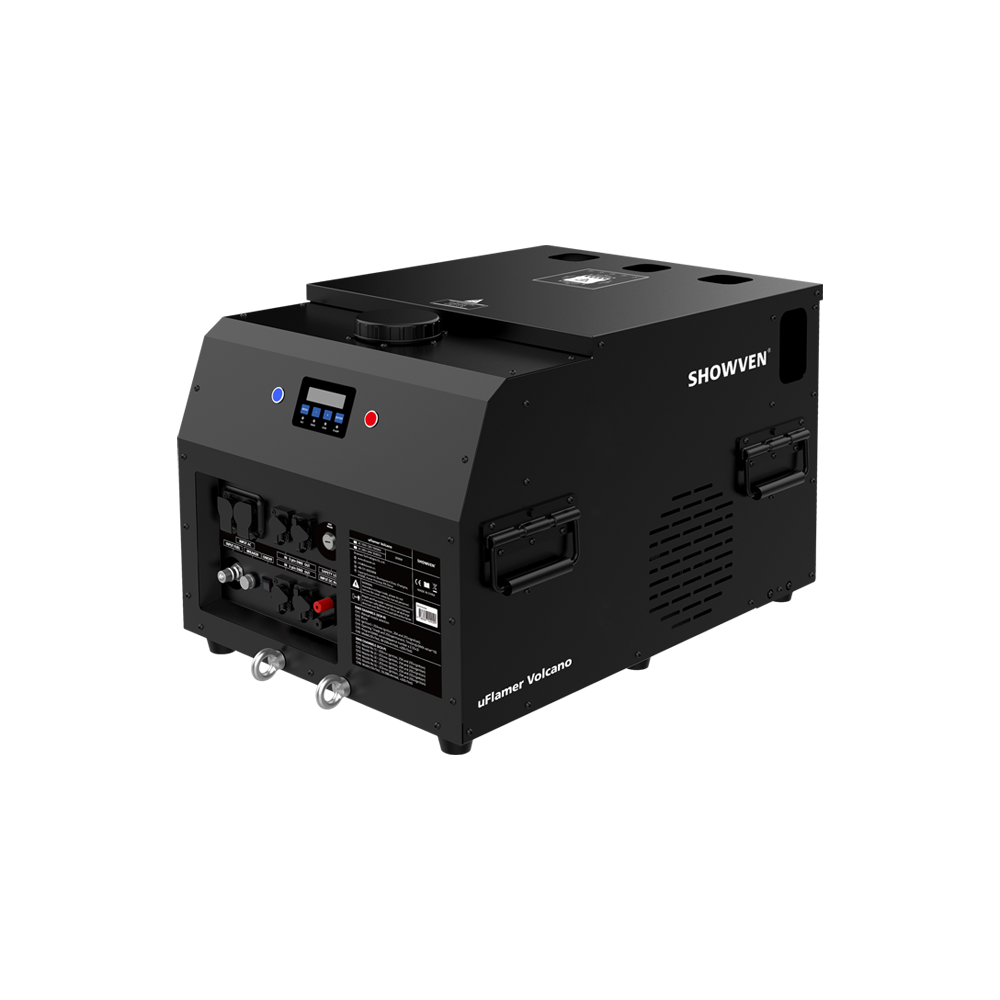

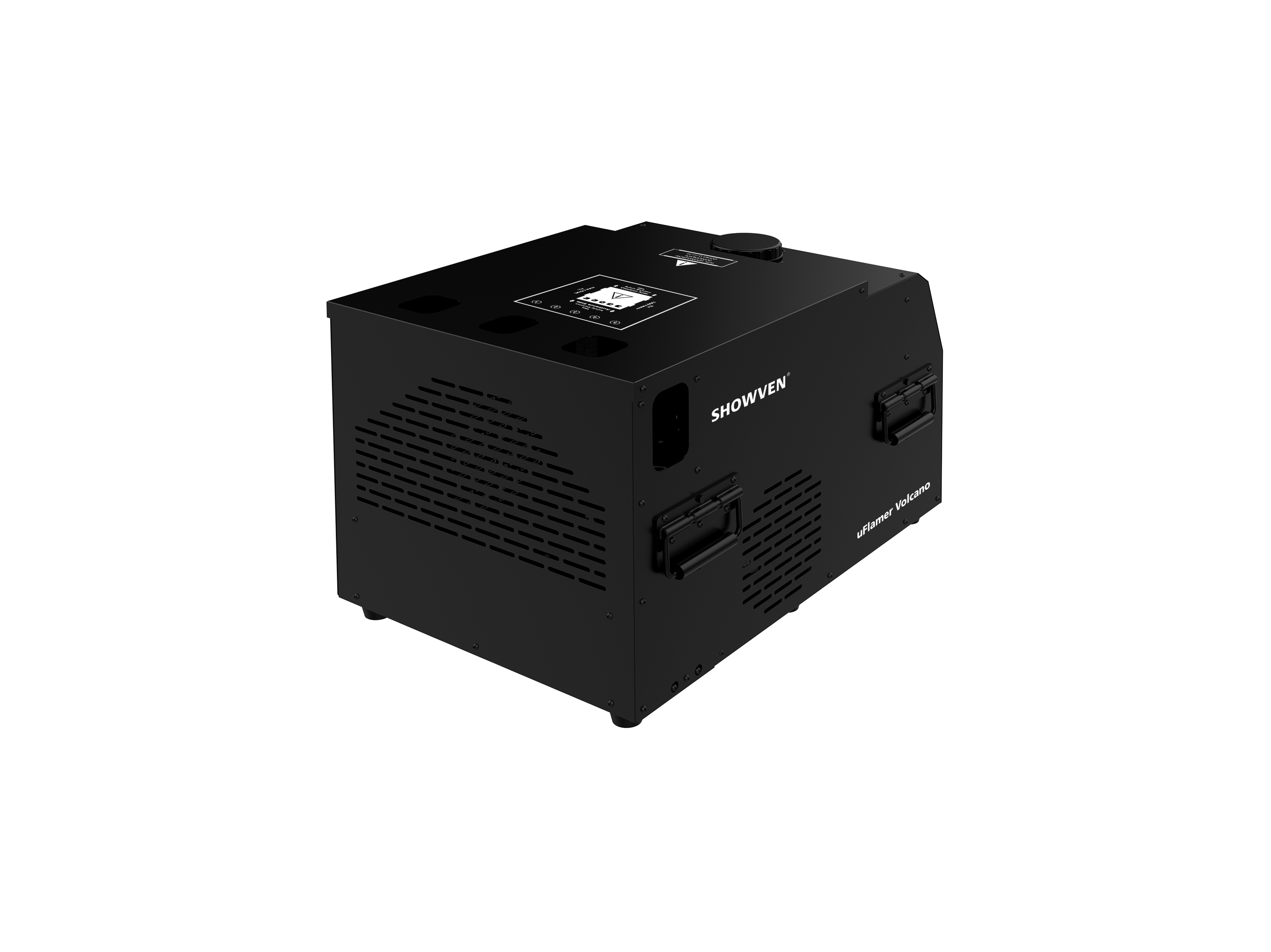

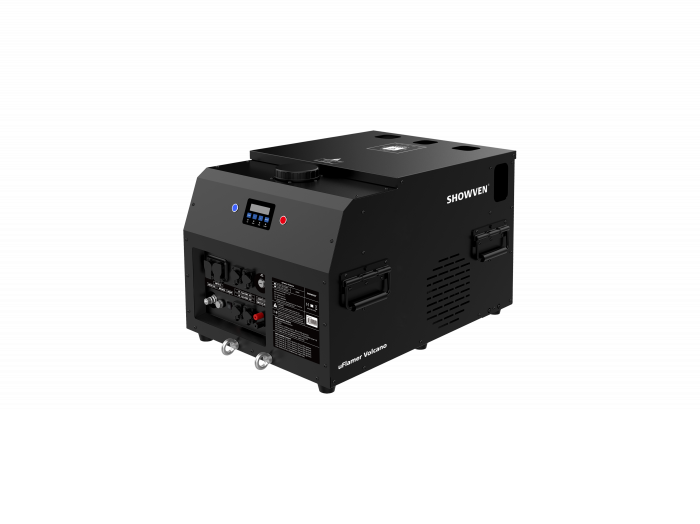

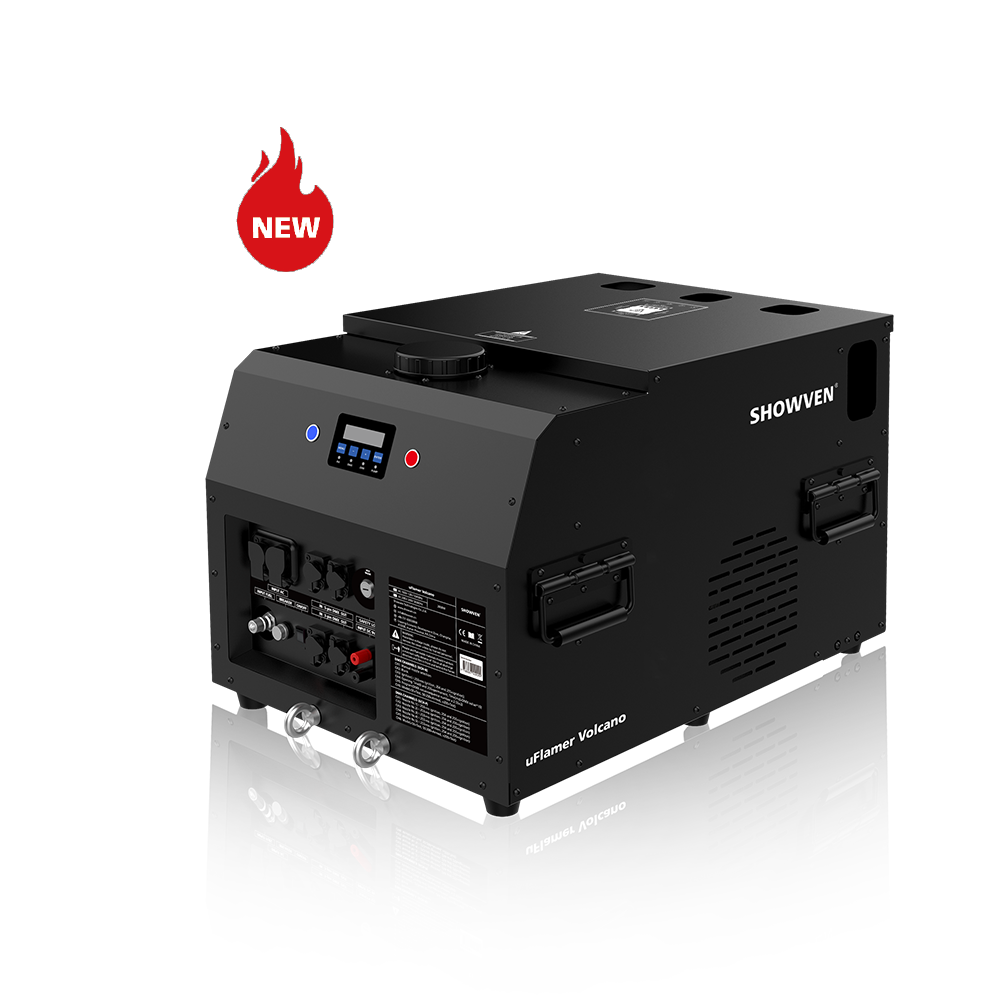

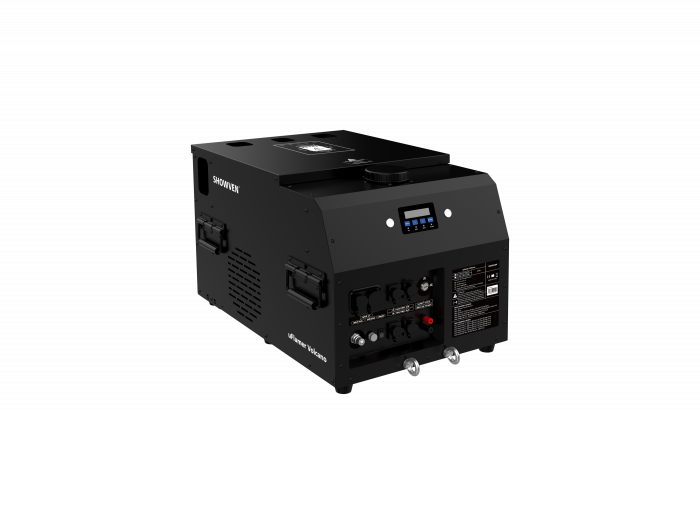

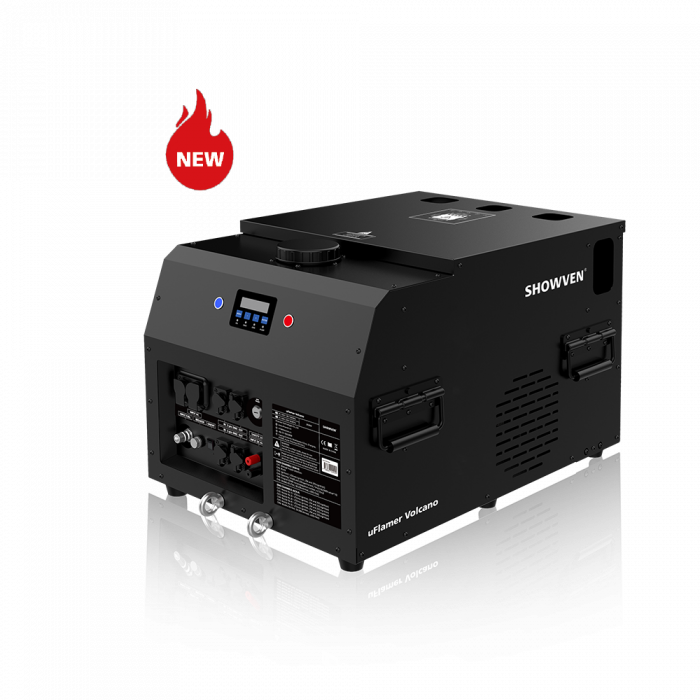

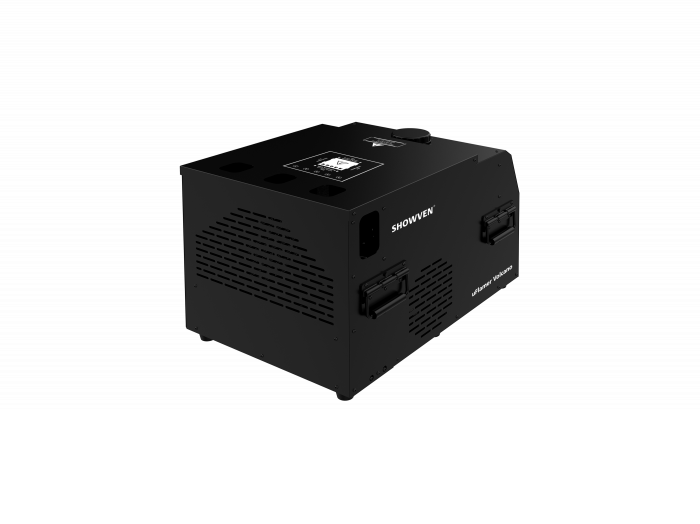

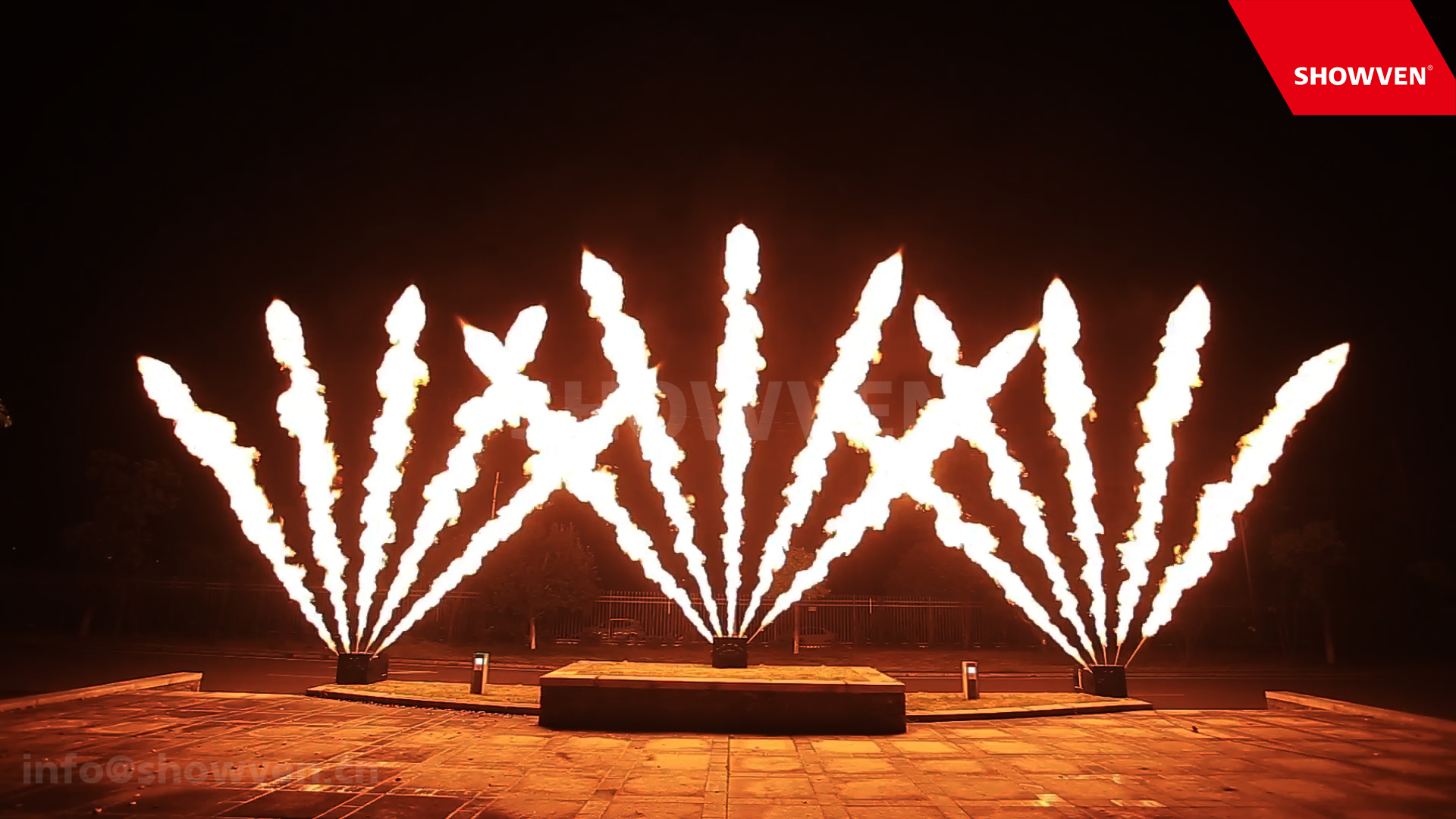

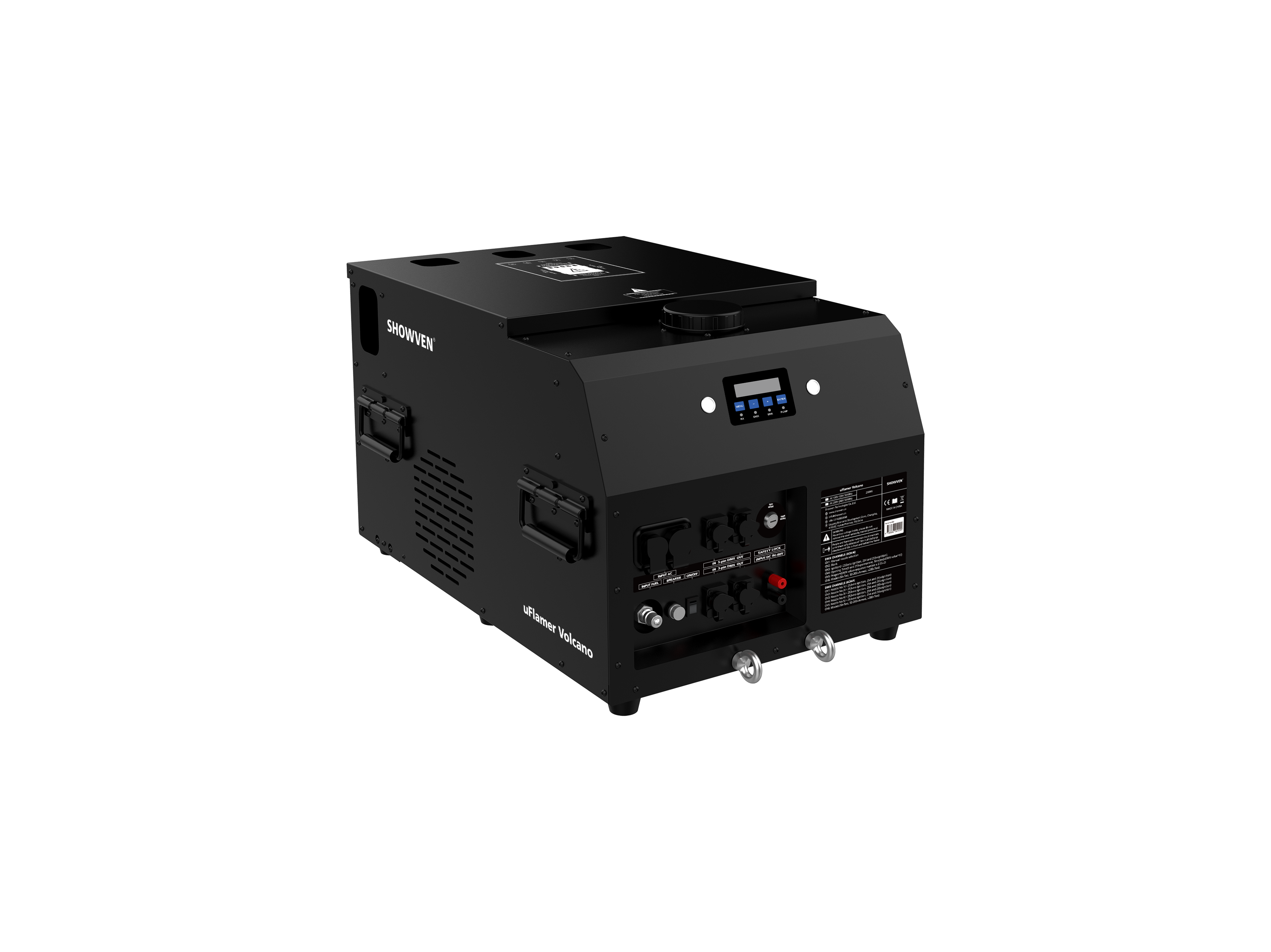

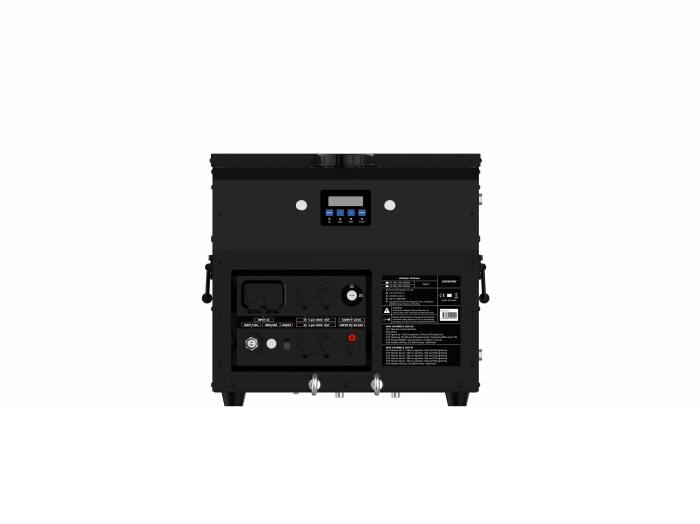

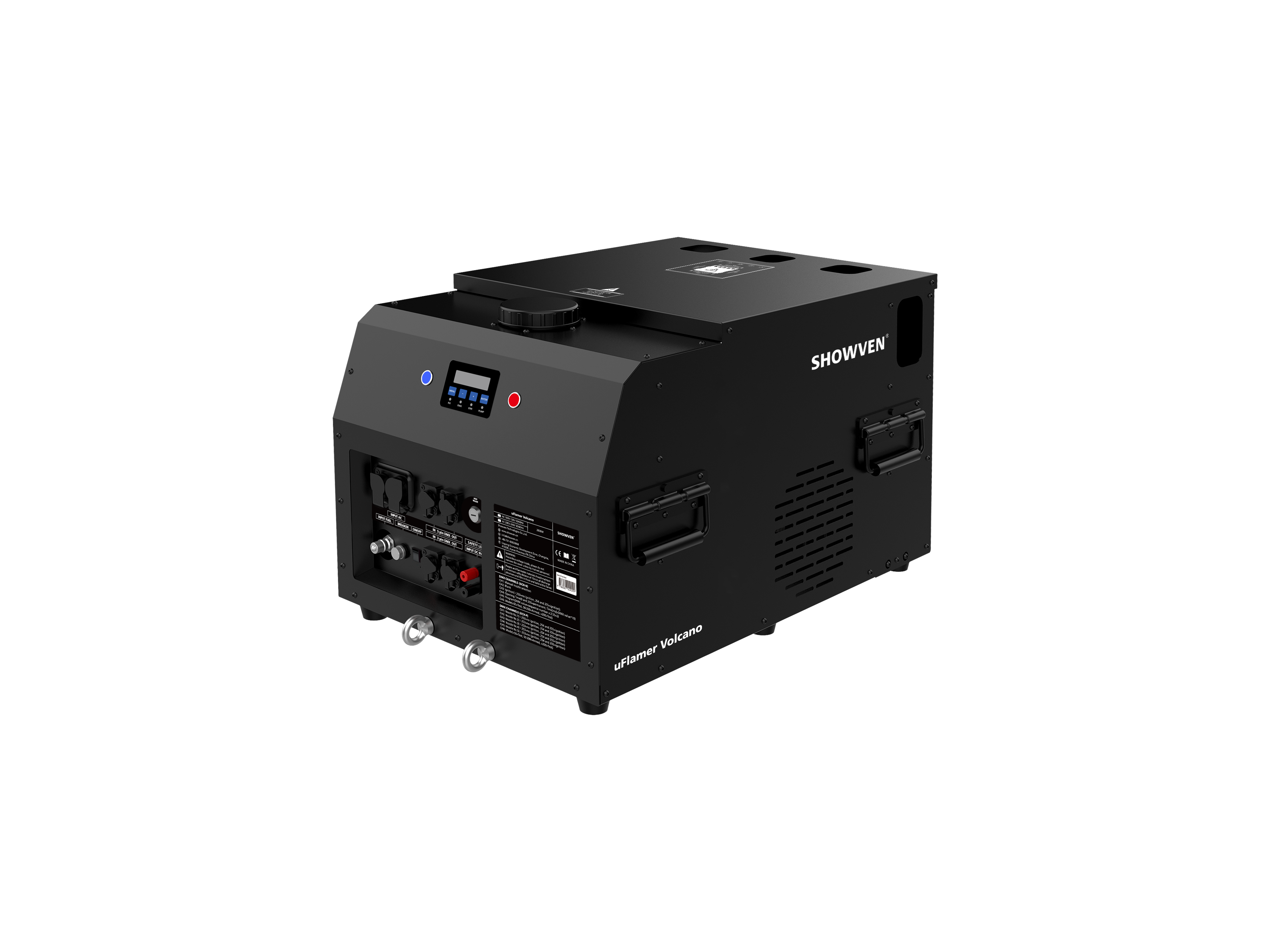

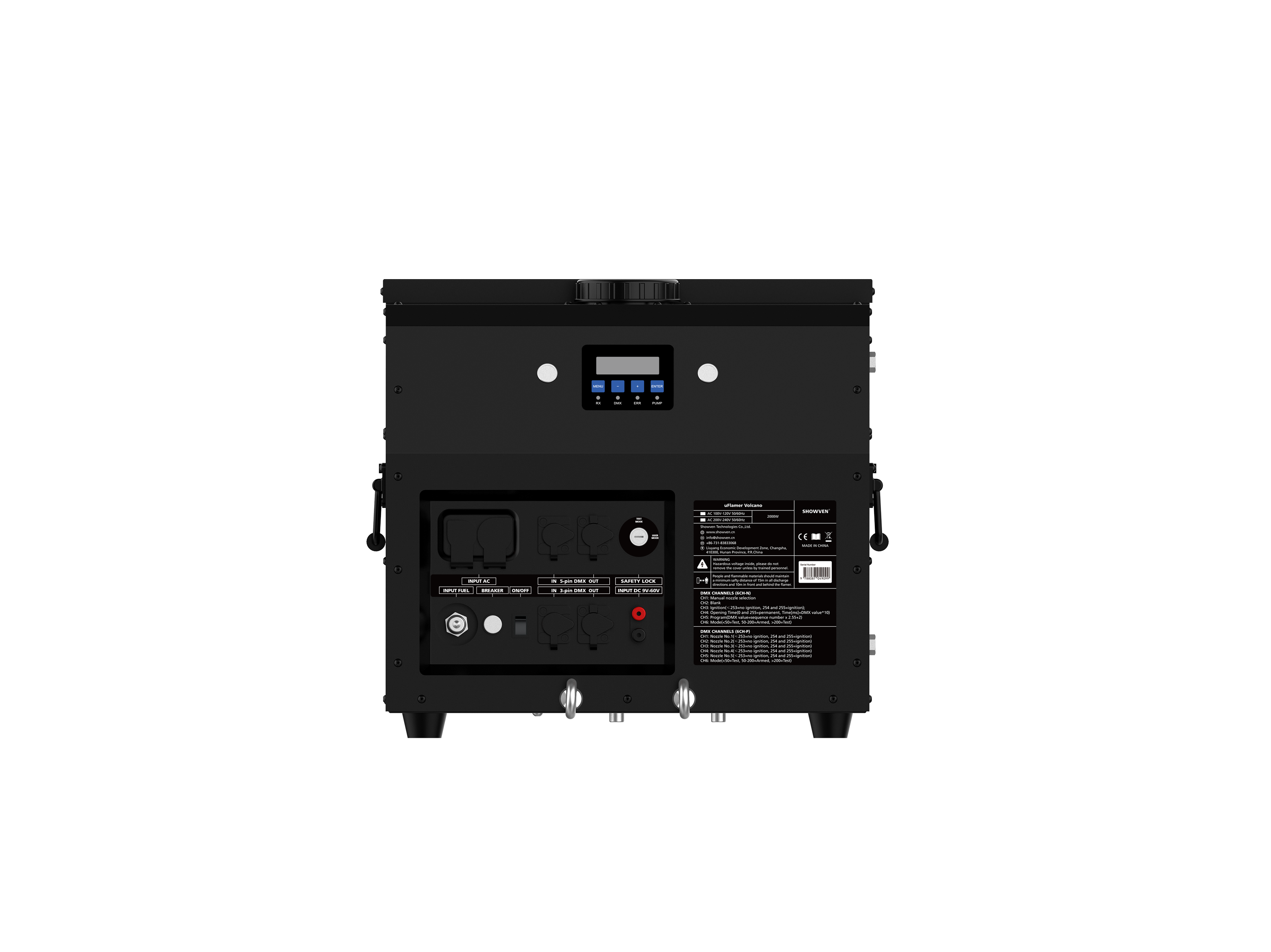

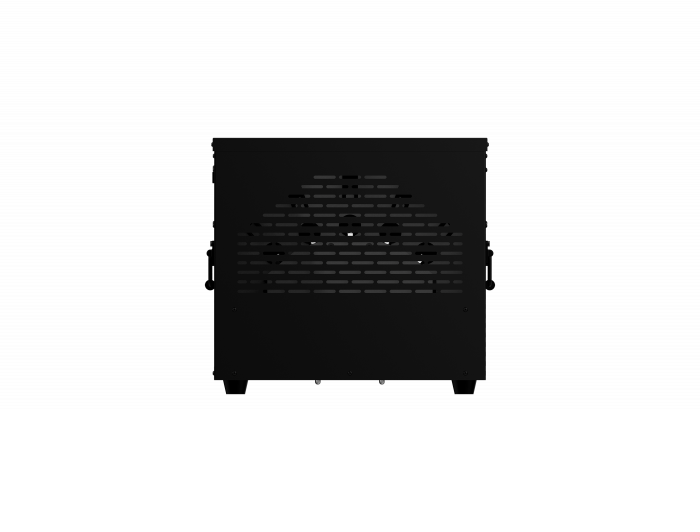

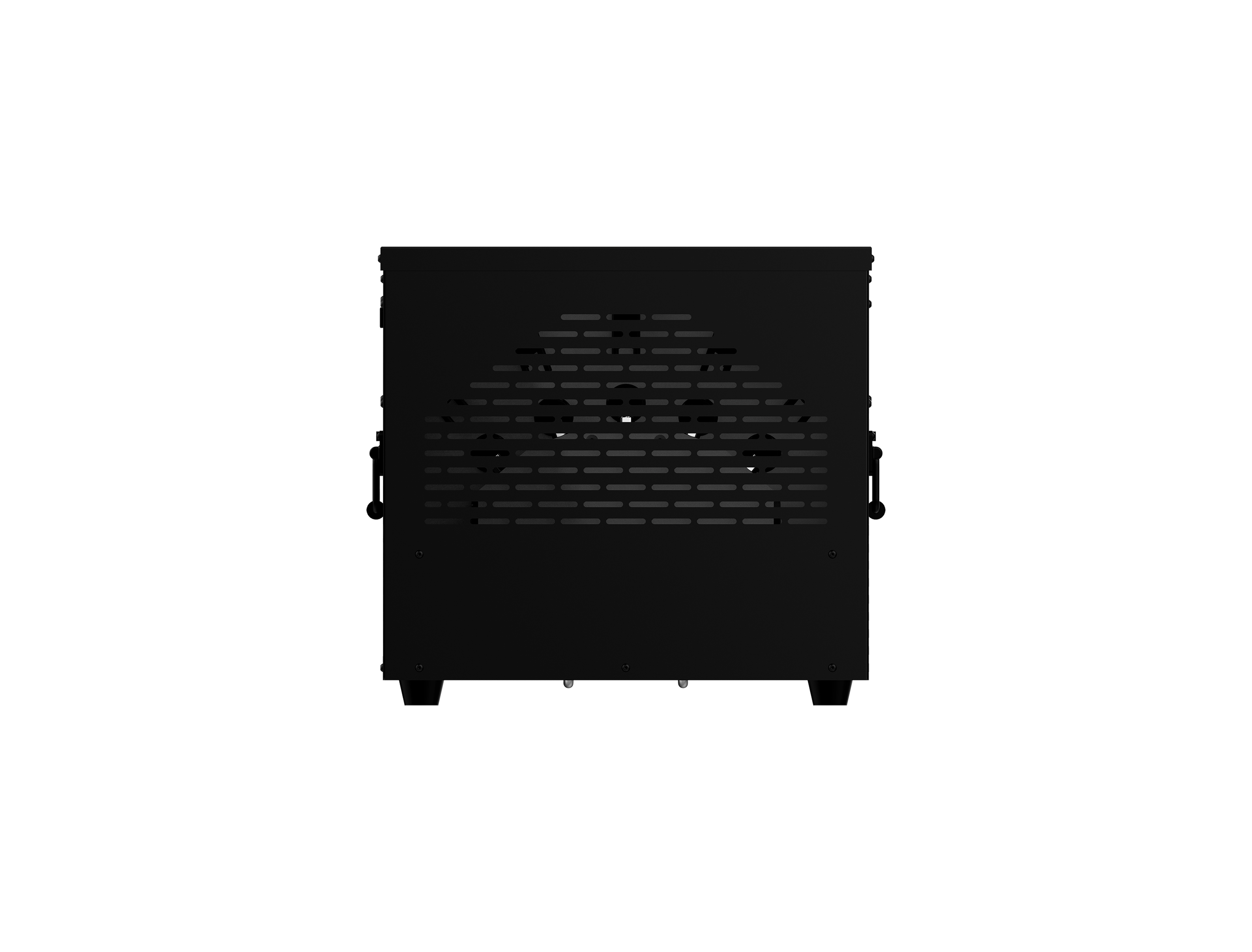

uFlamer® Volcano is high end liquid flamer system with five nozzles, each nozzle can firing individually or simultaneously. Volcano with 90 preset firing sequences, 25L built-in fuel tank and pumping system, multi safety design and reliable valve component allowing operators to create spectacular firing effects much easier. It is an ideal choice for fireworks displays, outdoor concert, opening ceremony, sports, scenic area etc.

Specifications:

DIMENSION: 630×450×400mm
WEIGHT: 48kg
HOUSING MATERIAL: 304 stainless steel
VOLTAGE: 220v/110V, 50/60Hz
WORK POWER: 2000W
FLAMER HEIGHT: 8-10m
FLAME ANGLES: 5 directions
FUEL: ISOPAR, ISOPROPANOL
FUEL TANK CAPACITY: 25L
FUEL CONSUMPTION: 60mL/s per nozzle
WORK TEMP.: -20℃ to 50℃
INTERFACE: SEETRONIC 3-PIN & 5-PIN XLR, Neutrik® PowerCON TRUE1
IGNITION: High voltage electron ignition
CONTROL: DMX, 9-60V Pyro
USAGE IN RAIN: YES
Category: FLAMER
Category:

Description

Features and advantages

5-heads plug and play liquid flamer with effects up to 10m
Independent control of each head
25L built-in stainless steel fuel tank,support automati crefueling station
Real-time fuel level display
Integrated valve block design, premium and independent jet valve
Customized waterproof igniter and structure design, can be used in rain
DMX control, compatible with 9-60V pyro signal
Safety switch, intelligent electronic control alarming system

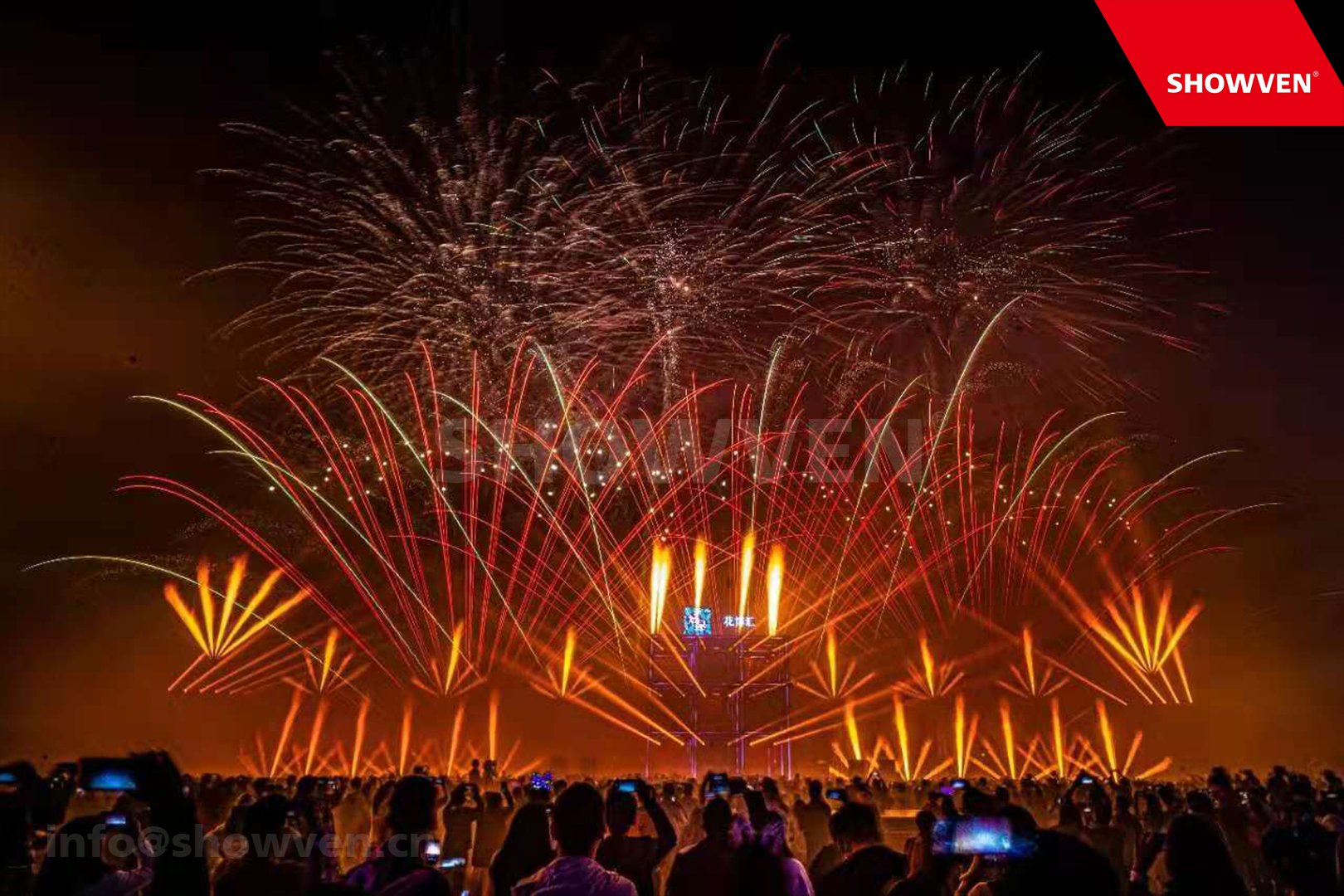

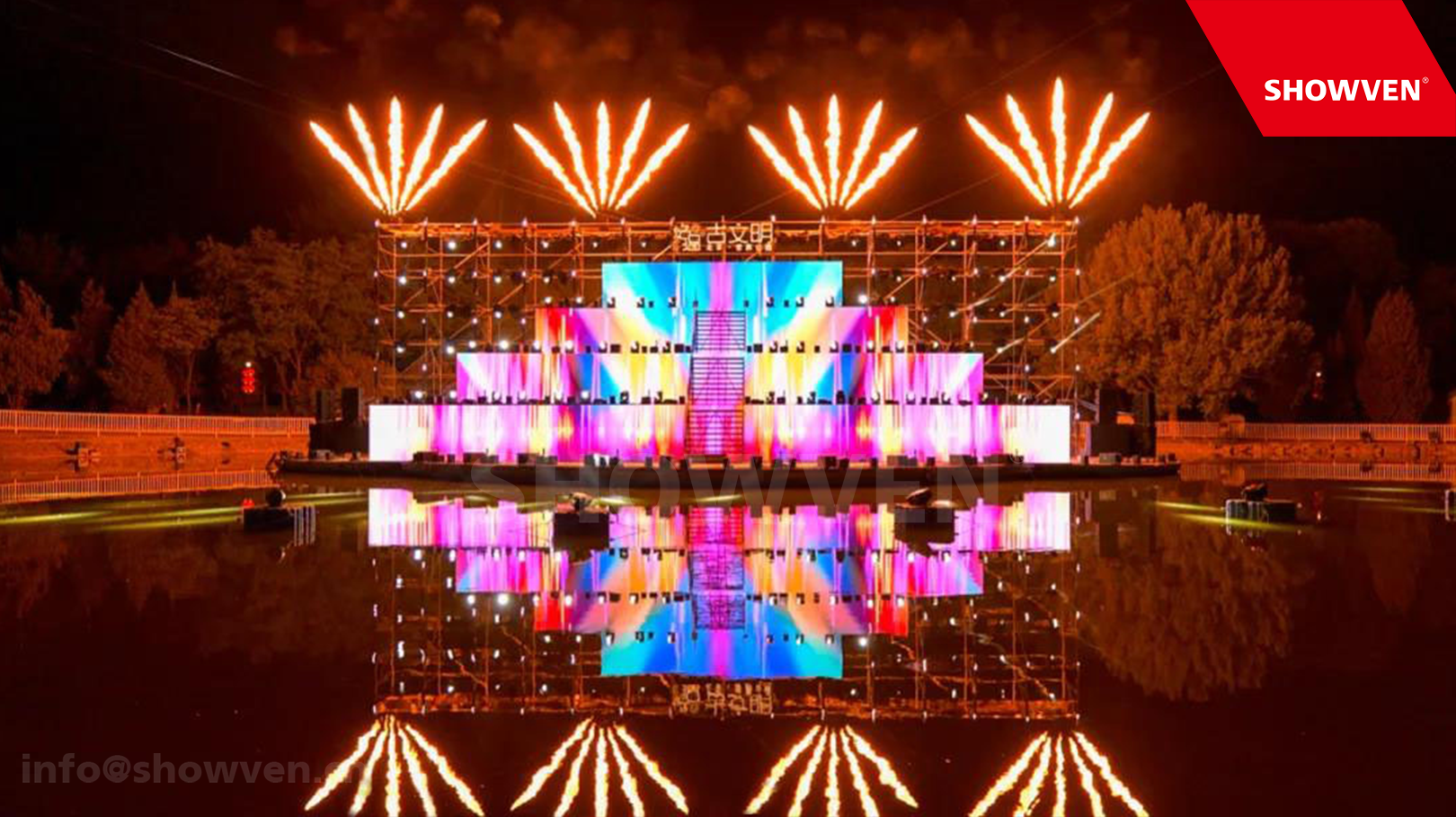

Rerlated Cases
